- material acryl
- sealing by means of an O-ring
- approx. 3ml per halfchamber
- gaslift
- chamber closure by locking ring

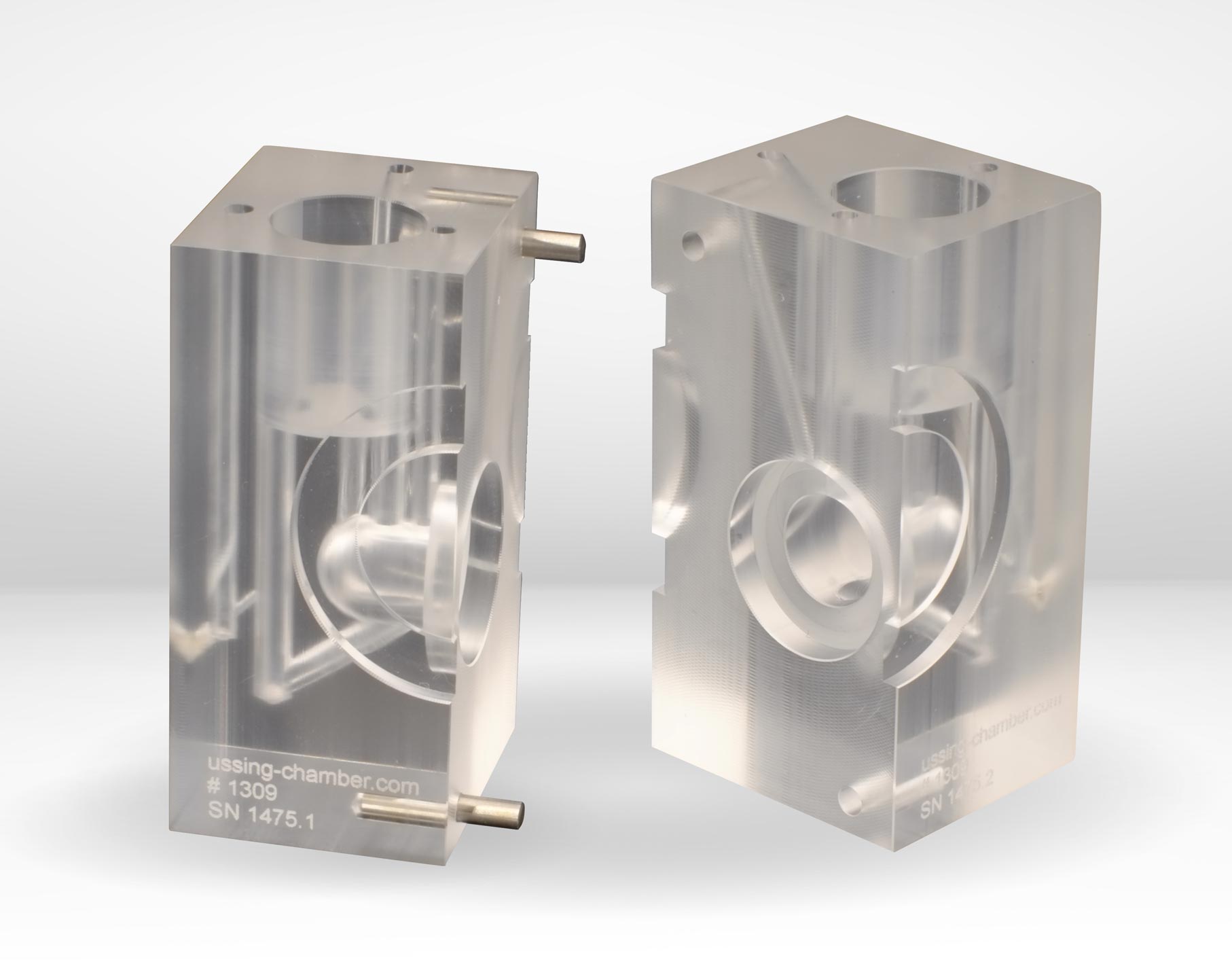

Ussing chamber for holding Snapwell® Cell Culture Caps of type 3407 (0.4µm polycarbonate), 3801 (0.4µm clear polyester), and 3802 (3µm polycarbonate).
The Snapwell cup is held using adapter rings.
An adapter ring is available to accommodate epithelial tissue (opening: 10mm, round).
With additional inlays, the opening diameter can be reduced (down to 2mm), making this chamber universally applicable.
However, if only tissue samples are to be examined, we recommend Ussing Chambers #1306, #1308, or #1338.
